| Image | Description and Main Parameters | Part Code | Dimension | Original Part Number | Documents | Quantity (pcs) |
|---|---|---|---|---|---|---|
 |

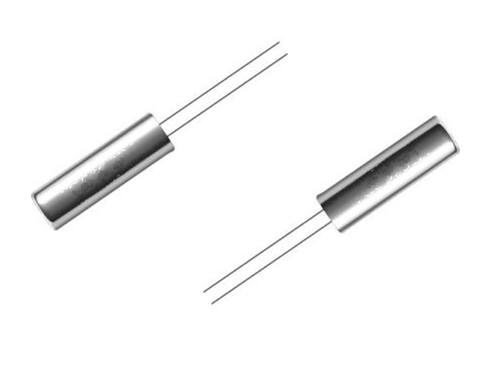

25.6KHz KHz DIP Crystals DIA 2X6 2 Pins, 12.5pF, +/-20ppm -20 ~+70 C | YA25K60000L122 | Ø2.1*L6.2mm Max. | CA 25K6A20-12.5-20-35BLFDTLF206/AD2 | Data Sheet | 2000 |
|
30.72KHz KHz DIP Crystals DIA 2X6 2 Pins, 12.5pF, +/-20ppm -20 ~+70 C | YA30K72000L122 | Ø2.1*L6.2mm Max. | CA 30K72A20-12.5-20-35BLFDTLF206/AD2 | Data Sheet | 2000 |
|
28KHz KHz DIP Crystals DIA 2X6 2 Pins, 12.5pF, +/-20ppm -20 ~+70 C | YA28K00000L122 | Ø2.1*L6.2mm Max. | CA 28K0A20-12.5-20-35BLFDTLF206/AD2 | Data Sheet | 2000 |
 |
28.63636MHz, SMD Crystal, Glass Seal, 2 pads, +/-30ppm, 20pF | XR28M63636S420 | L5.0*W3.2*H1.2mm | CMG532 28M63636A30-20-30-40-40TLH | Data Sheet | 6000 |
 |

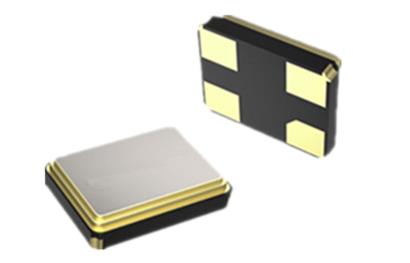

12.000MHz, MHz SMD Crystal, 4 Pads, | XB12M00000S00S | L7.0*W5.0*H1.1mm | CM75 12M0A30-S-30-40-50TLF | Data Sheet | 1000 |
 |
24.000MHz, MHz SMD Crystal, 4 Pads, +/-30ppm, 12pF, Tape/Reel, RoHS. | XB24M00000S412 | L7.0*W5.0*H1.1mm | CM75 24M0A30-12-30-40-30TLF | Data Sheet | 6000 |
 |

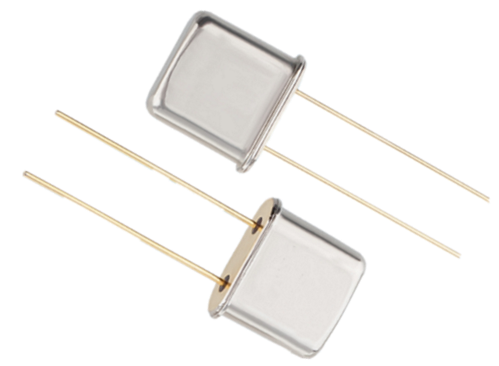

25.000MHz, MHz DIP Crystal, UM-1 Type, +/-30ppm, 20pF, RoHS. | XG25M00000L420 | L7.9*W3.2*H8.2mm | CA 25M0A30-20-50-40-70 BLF | Data Sheet | 3000 |
|
25.000MHz, SMD Crystal, Glass Seal, 2 pads, +/-30ppm, 18pF | XR25M00000S418 | L5.0*W3.2*H1.2mm | CMG532 25M0A30-18-30-40-40TLH | Data Sheet | 2000 |
 |

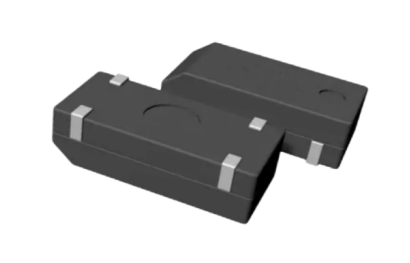

36.0KHz, KHz SMD Crystal, Plastic Case, 4 Pads, +/-30ppm, 12.5pF, Tape/Reel, RoHS III Compliant Exempt | YP36K00000S103 | L8.0*W3.8*H2.4mm | CCMC 36K0A30-12.5-40-50 TLH PMX206/AM23600012504T6 |
Data Sheet | 6000 |
 |

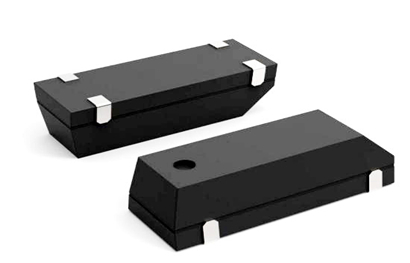

11.0592MHz,MHz SMD Plastic Crystal, ±30ppm 20pF -40°C ~ 85°C | YQ11M05920S420 | L12.50*W 4.60*H3.7mm | CCME 11M0592A30-20-50-40-120TLH | Data Sheet | 2000 |
 |
12.000MHz,MHz SMD Plastic Crystal, ±30ppm 18pF -40°C ~ 85°C | YQ12M00000S418 | L12.50*W 4.60*H3.7mm | CCME 12M0A30-18-50-40-80TLHAMR1200001804F6 | Data Sheet | 2000 |
 |
14.74560MHz,MHz SMD Plastic Crystal, ±30ppm 20pF -40°C ~ 85°C | YQ14M74560S420 | L12.50*W 4.60*H3.7mm | CCME 14M74560A30-20-50-40-80TLH | Data Sheet | 2000 |
 |
16.000MHz,MHz SMD Plastic Crystal, ±30ppm 20pF -40°C ~ 85°C | YQ16M00000S420 | L12.50*W 4.60*H3.7mm | CCME 16M0A30-20-50-40-80TLH AMR1600002004F6 |
Data Sheet | 2000 |
 |
24.000MHz,MHz SMD Plastic Crystal, ±30ppm 20pF -40°C ~ 85°C | YQ24M000000S420 | L12.50*W 4.60*H3.7mm | CCME 24M0A30-20-50-40-30 TLH | Data Sheet | 1000 |
 |

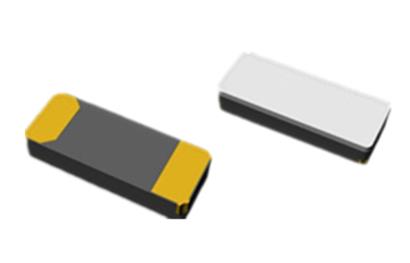

32.768KHz, SMD Crystal, 2 pads,+/-20ppm, 9pF, 70 Kohm Max. T/R, RoHS | YR32K76800S005 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-9-40-70TLF | Data Sheet | 69000 |
 |
32.768KHz, SMD Crystal, 2 pads, +/-20ppm, 6pF, 70 Kohm Max. T/R, RoHS | YR32K76800S004 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-6-40-70TLF | Data Sheet | 30000 |
 |
32.768KHz, SMD Crystal, 2 pads, +/-20ppm, 7pF, 70 Kohm Max. T/R, RoHS | YR32K76800S003 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-7-40-70TLF | Data Sheet | 12000 |
 |
32.768KHz, SMD Crystal, 2 pads, +/-20ppm, 12.5pF, 70 Kohm Max. T/R, RoHS | YR32K76800S001 | L3.20*W1.50*H0.9mm | CCMM 32K768A20-12.5-40-70TLF | Data Sheet | 15000 |
 |
32.000MHz, SMD Crystal, 4 Pads | XV32M00000S110 | L2.0*W1.6*H0.5mm | CM21 32M0A10-10-20-40-60TLF | Data Sheet | 6000 |
 |
8.000MHz, SMD Plastic Crystal +/-30ppm, 16pF | YQ8M000000S416 | L12.50*W 4.60*H3.7mm | CCME 8M0A30-16-50-40-120TLH | Data Sheet | 4000 |
 |
8.000MHz, SMD Plastic Crystal | YQ8M000000S418 | L12.50*W 4.60*H3.7mm | CCME 8M0A30-18-50-40-120TLH | Data Sheet | 2000 |
 |
7.3728MHz, SMD Plastic Crystal | YQ7M372800S420 | L12.50*W 4.60*H3.7mm | CCME 7M3728A30-20-50-40-120TLHAMR0737202004F6 | Data Sheet | 2000 |
 |
6.1440MHz, SMD Plastic Crystal | YQ6M144000S418 | L12.50*W 4.60*H3.7mm | CCME 6M144A50-18-50-40-100 TLH | Data Sheet | 4000 |
 |
4.9152MHz, SMD Plastic Crystal | YQ4M915200S416 | L12.50*W 4.60*H3.7mm | CCME 4M9152A50-16-50-40-150TLH | Data Sheet | 27000 |
 |
4.9152MHz, SMD Plastic Crystal, +/-50ppm, 18pF | YQ4M915200S418 | L12.50*W 4.60*H3.7mm | CCME 4M9152A50-18-50-40-150TLH | Data Sheet | 2000 |
 |
4.000MHz, SMD Plastic Crystal, +/-50ppm, 18pF | YQ4M000000S418 | L12.50*W 4.60*H3.7mm | CCME 4M0A50-18-50-40-150TLH | Data Sheet | 15000 |
 |
4.000MHz, SMD Plastic Crystal | YQ4M000000S420 | L12.50*W 4.60*H3.7mm | CCME 4M0A50-20-50-40-150TLH | Data Sheet | 1000 |
 |
3.68640MHz, SMD Plastic Crystal | YQ3M686400S420 | L12.50*W 4.60*H3.7mm | CCME 3M6864A50-20-50-40-150TLH | Data Sheet | 2000 |
 |
3.68640MHz, SMD Plastic Crystal | YQ3M686400S418 | L12.50*W 4.60*H3.7mm | CCME 3M6864A30-18-50-40-150TLH | Data Sheet | 2000 |
 |
3.5795450MHz, SMD Plastic Crystal | YQ3M579545S418 | L12.50*W 4.60*H3.7mm | CCME 3M579545A50-18-50-40-150TLH | Data Sheet | 2000 |
 |
24.000MHz, SMD Plastic Crystal | YQ24M00000S420 | L12.50*W 4.60*H3.7mm | CCME 24M0A30-20-50-40-30 TLH AMR2400002004F6 |
Data Sheet | 1000 |
 |
12.500MHz, SMD Plastic Crystal | YQ12M500S33418 | L12.50*W 4.60*H3.7mm | CCME 12M5A30-18-30-40-60TLHAMR1250001804E6 | Data Sheet | 1000 |
 |
20.000MHz, SMD Plastic Crystal | YQ20M00000S416 | L12.50*W 4.60*H3.7mm | CCME 20M0A30-16-50-40-40TLH AMR2000001604F6 |
Data Sheet | 5000 |
 |
10.000MHz, SMD Plastic Crystal | YQ10M00000S418 | L12.50*W 4.60*H3.7mm | CCME 10M0A30-18-50-40-120TLH | Data Sheet | 2000 |
 |
32.768KHz, SMD Crystal, 12.5pF, +/-30ppm, 4 Pads | YP32K76800S003 | L8.0*W3.8*H2.4mm | CCMC 32K768A30-12.5-40-60TLH PMX206/AM23276812504T6 |
Data Sheet | 39000 |
 |
32.768KHz, SMD Crystal, 6pF +/-20ppm, 4 Pads | YP32K76800S002 | L8.0*W3.8*H2.4mm | CCMC 32K768A20-6-40-60TLH PMX206/AM23276800603T6 |
Data Sheet | 15000 |
 |
8.000MHz, SMD Crystal, Glass Seal, 2 pads | XR8M000000S418 | L5.0*W3.2*H1.2mm | CMG532 8M0A30-18-30-40-120 TLH | Data Sheet | 2000 |
 |
12.000MHz, SMD Crystal, Glass Seal, 2 pads | XR12M00000S101 | L5.0*W3.2*H1.2mm | CMG532 12M0A30-10-50-40-80TLH | Data Sheet | 18000 |
 |
8.0000MHz, SMD Crystal, Glass Seal, 2 pads | XP8M000000S418 | L6.0*W3.5*H1.2mm | CMG632 8M0A30-18-30-40-150 TLH | Data Sheet | 1000 |
 |
32.000MHz, SMD Crystal, Glass Seal, 2 pads | XP32M00000S418 | L6.0*W3.5*H1.2mm | CMG632 32M0A30-18-30-40-30 TLH | Data Sheet | 2000 |
 |
25.000MHz, SMD Crystal, Glass Seal, 2 pads | XP25M00000S416 | L6.0*W3.5*H1.2mm | CMG632 25M0A30-16-30-40-40 TLH | Data Sheet | 2000 |
 |
25.000MHz, SMD Crystal, 4 Pads | XF25M00000S001 | L3.2*W2.5*H0.7mm | CM32 25M0A50-20-50-40-40 TLF | Data Sheet | 1000 |
 |
24.545454MHz, SMD Crystal, 4 Pads | XF24M54545S001 | L3.2*W2.5*H0.7mm | CM32 24M545454A30-12-50-40-80 TLF | Data Sheet | 3000 |
 |
24.000MHz, SMD Crystal, 4 Pads | XF24M00000S101 | L3.2*W2.5*H0.7mm | CM32 24M0A10-18-10-20/75-40 TLF | Data Sheet | 6000 |
 |
24.000MHz, SMD Crystal, 4 Pads | XF24M00000S002 | L3.2*W2.5*H0.7mm | CM32 24M0A50-20-50-20-50 TLF | Data Sheet | 1000 |
 |
24.576MHz, SMD Crystal, 4 Pads | XD24M57600S001 | L5.0*W3.2*H1.0mm | CM53 24M576A50-20-100-0/70-50TLF | Data Sheet | 1000 |
 |
12.000MHz, MHz SMD Crystal, 4 Pads | XF12M00000S101 | L3.2*W2.5*H0.7mm | CM32 12M0A30-18-30-20-100TLF | Data Sheet | 6000 |
 |
25.000MHz, SMD Crystal, 4 Pads | XB25M00000S420 | L7.0*W5.0*H1.1mm | CM75 25M0A30-20-30-40-60 TLF | Data Sheet | 2000 |
 |

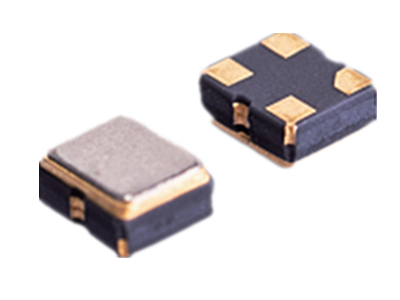

48.000MHz, SMD Oscillator, 2520, 3.3V | RF48M00000S300 | L2.5*W2.0*H1.0mm | COM2231BGI01 TLF-48M000 | Data Sheet | 6000 |
 |

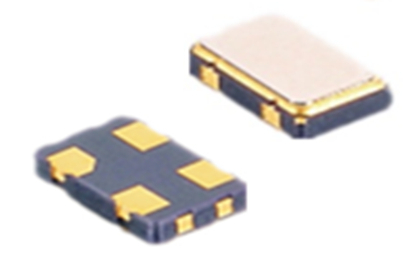

26.000MHz, SMD Oscillator, 5032, 3.3V | RD16M00000S300 | L5.0*W3.2*H1.3mm | COM5331BGI01TLF-16M000 | Data Sheet | 13000 |
 |
4MHz,MHz SMD Plastic Crystal, ±30ppm, 16pF | YQ4M000000S416 | L12.5*W4.6*H3.7mm | CCME 4M0A50-16-50-40-150 TLH | Data Sheet | 2000 |
 |
20MHz,MHz SMD Plastic Crystal, ±30ppm 20pF -40°C ~ 85°C | YQ20M00000S420 | L12.50*W 4.60*H3.7mm | CCME 20M0A30-20-50-40-40TLH AMR2000002004F6 |
Data Sheet | 6000 |
