Say Goodbye to Charging Woes: NextGen Support Solutions for Robotic Vacuum Appliances

Lake Forest, CA, USA – Jan. 10, 2026, NextGen Components Inc. supports solutions for Robotic Vacuum Appliances.

As living standards rise and the smart home concept deepens, automated cleaning appliances are entering households at an unprecedented speed. With the global robotic vacuum market projected to exceed $11.17 billion in 2025, manufacturers face a critical challenge:

delivering products that are not only intelligent but fundamentally robust. In this rapidly evolving sector, reliability, safety, and battery endurance have become key factors in consumer decision-making.

At NextGen Components, we provide high-performance discrete semiconductors—specifically, the MDD Diodes series—that form the backbone of safe and efficient charging systems.

The Solution: Intelligent Charging Architecture

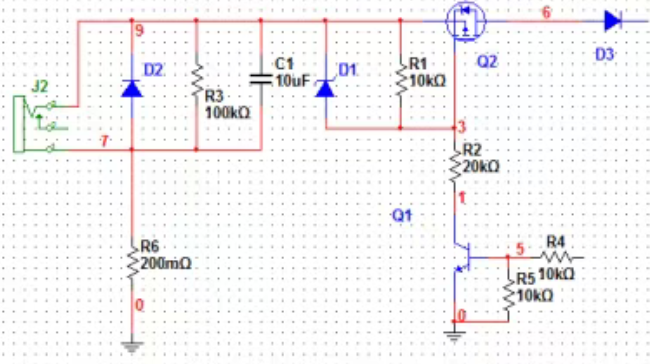

To meet the rigorous demands of modern cleaning robots, we recommend a "Power Transmission - Control Drive - Layered Protection" triple architecture. Centering on the MMBT5551, SS310, MDD30P04D, BZT52C15, and SMAJ36A, this reference design achieves

full-link optimization from the grid interface to the battery cell.

Dual voltage protection network

Interface Protection (SMAJ36A) Defends against external grid surges (e.g., plug sparks). Features a 36V breakdown voltage and 600W peak power with a response time of <1ns.

Gate Safety (BZT52C15) Precision MOSFET gate protection. Provides 15V stabilization (±5%) to prevent oxide layer damage caused by excessive gate voltage.

Smart Control (MDD30P04D & MMBT5551)

The core of the CC-CV logic. The MDD30P04D handles power switching, while the MMBT5551 amplifies current signals for the MCU, enabling precise real-time monitoring.

Technical Deep Dive: Logic & Adaptability

 01. Precision Current Sampling

A sampling resistor (e.g., 0.2Ω) is connected in series to the Source of the MDD30P04D. The MMBT5551 amplifies this signal and feeds it to the MCU ADC interface for real-time monitoring.

02. PWM Regulation (CC-CV Strategy)

The MCU dynamically adjusts the PWM duty cycle based on battery voltage:

Constant Current (CC): When voltage < 4.2V, maintains 1.5A current.

Constant Voltage (CV): When the voltage reaches 4.2V, reduce the duty cycle to taper the current until full.

03. Compatibility & Battery Extension

Wide Voltage Range: The layered protection of BZT52C15 (15V) and SMAJ36A (36V) allows compatibility with 12V/24V robot models.

Battery Extension: By adjusting the sampling resistor value and MCU algorithm, the system can adapt to Nickel batteries (constant current) or LiFePO4 batteries (3.65V cutoff).

Building a Robust Charging Ecosystem:

This solution, through the precise coordination of hardware circuits and the flexible extension of software algorithms, not only meets fundamental charging requirements but also builds a "safe, reliable, efficient, and intelligent" charging ecosystem.

It provides the core assurance for the endurance and user experience of vacuum-mopping robots.

Why Partner with NextGen Components?

In the era of widespread adoption of cleaning appliances, innovation in charging technology is not merely a functional upgrade—it is a fundamental improvement in the user experience. NextGen Components offers a professional and reliable portfolio of discrete devices

(including the MDD series) to power this future.

Broad Portfolio & Equivalents

We stock a vast array of discrete components, including hard-to-find parts and high-quality equivalents for major brands, ensuring your production line never stops.

Quality Assurance

All products undergo rigorous 100% testing. Our supplier facilities are ISO 9001 and ISO 14000 certified.

Speed & Support:

Based in Lake Forest, CA, we offer rapid shipment of in-stock items and dedicated engineering support to help you select the right protection and control devices for your application.
