CA45L A/B/C/D/E
CA45L A/B/C/D/E

ALL

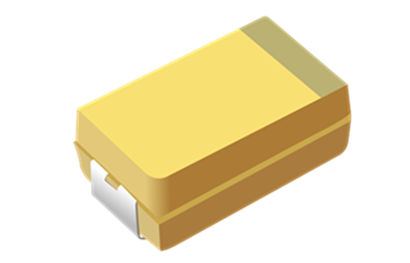

Image Description and Main Parameters Part Series Code Dimension Original Part Number Documents
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 35V, Capacitance 47μF, Tolerance ±20%, ESR 0.40 Ohms CA45LE035M476T L7.30*W4.30*H4.10mm CA45L-E035M476TE400 Data Sheet View Inventory
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 16V, Capacitance 220μF, Tolerance ±20%, ESR 0.22 Ohms CA45LE016M227T L7.30*W4.30*H4.10mm CA45L-E016M227TE220 Data Sheet View Inventory
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 10V, Capacitance 470μF, Tolerance ±20%, ESR 0.15 Ohms CA45LE010M477T L7.30*W4.30*H4.10mm CA45L-E010M477TE150 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 50V ,Capacitance 6.8μF,Tolerance ±10%, ESR 0.70 Ohms CA45LD050K685T L7.30*W4.30*H2.80mm CA45L-D050K685TE700 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 35V ,Capacitance 22μF,Tolerance ±10%, ESR 0.40 Ohms CA45LD035K226T L7.30*W4.30*H2.80mm CA45L-D035K226TE400 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 16V ,Capacitance 47μF,Tolerance ±10%, ESR 0.30 Ohms CA45LD016K476T L7.30*W4.30*H2.80mm CA45L-D016K476TE300 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 16V ,Capacitance 100μF,Tolerance ±10%, ESR 0.15 Ohms CA45LD016K107T L7.30*W4.30*H2.80mm CA45L-D016K107TE150 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 10V ,Capacitance 220μF,Tolerance ±10%, ESR 0.15 Ohms CA45LD010K227T L7.30*W4.30*H2.80mm CA45L-D010K227TE150 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 10V ,Capacitance 100μF,Tolerance ±10%, ESR 0.20 Ohms CA45LD010K107T L7.30*W4.30*H2.80mm CA45L-D010K107TE200 Data Sheet View Inventory
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 6.3V ,Capacitance 470μF,Tolerance ±10%, ESR 0.20 Ohms CA45LD6R3K477T L7.30*W4.30*H2.80mm CA45L-D6R3K477TE200 Data Sheet View Inventory
SMD Type, CA45L Series, Case C, EIA 6032-25 Voltage 20V ,Capacitance 68μF,Tolerance ±10%, ESR 0.40 Ohms CA45LC020K686T L6.00*W3.20*H3.20mm CA45L-C020K686TE400 Data Sheet View Inventory
SMD Type, CA45L Series, Case C, EIA 6032-25 Voltage 16V ,Capacitance 47μF,Tolerance ±10%, ESR 0.35 Ohms CA45LC016K476T L6.00*W3.20*H3.20mm CA45L-C016K476TE350 Data Sheet View Inventory
SMD Type, CA45L Series, Case C, EIA 6032-25 Voltage 16V ,Capacitance 100μF,Tolerance ±10%, ESR 0.20 Ohms CA45LC016K107T L6.00*W3.20*H3.20mm CA45L-C016K107TE200 Data Sheet View Inventory
SMD Type, CA45L Series, Case C, EIA 6032-25 Voltage 10V ,Capacitance 220μF,Tolerance ±10%, ESR 0.15 Ohms CA45LC010K227T L6.00*W3.20*H3.20mm CA45L-C010K227TE150 Data Sheet View Inventory
SMD Type, CA45L Series, Case C, EIA 6032-25 Voltage 10V ,Capacitance 100μF,Tolerance ±10%, ESR 0.25 Ohms CA45LC010K107T L6.00*W3.20*H3.20mm CA45L-C010K107TE250 Data Sheet View Inventory
SMD Type, CA45L Series, Case B, EIA 3528-19 Voltage 10V ,Capacitance 47μF,Tolerance ±10%, ESR 0.65 Ohms CA45LB010K476T L3.50*W2.80*H1.90mm CA45L-B010K476TE650 Data Sheet View Inventory
SMD Type, CA45L Series, Case B, EIA 3528-19 Voltage 6.3V ,Capacitance 220μF,Tolerance ±20%, ESR 0.6 Ohms CA45LB6R3M227T L3.50*W2.80*H1.90mm CA45L-B6R3M227TE600 Data Sheet View Inventory
SMD Type, CA45L Series, Case B, EIA 3528-19 Voltage 6.3V ,Capacitance 100μF,Tolerance ±10%, ESR 0.5 Ohms CA45LB6R3K107T L3.50*W2.80*H1.90mm CA45L-B6R3K107TE500 Data Sheet View Inventory
SMD Type, CA45L Series, Case A, EIA 3216-16 Voltage 10V ,Capacitance 10μF,Tolerance ±10%, ESR 1.8 Ohms CA45LA010K106T L3.20*W1.60H1.60mm CA45L-A010K106TE1K8 Data Sheet View Inventory
SMD Type, CA45L Series, Case A, EIA 3216-16 Voltage 6.3V ,Capacitance 100μF,Tolerance ±10%, ESR 1.5 Ohms CA45LA6R3K107T L3.20*W1.60H1.60mm CA45L-A6R3K107TE1K5 Data Sheet View Inventory

PRODUCTS

Metallized Film Capacitor

SiC Schottky Diode/MOSFET

Super Capacitor (EDLC)

CA45LA6R3K107T
Description and Main Parameters
SMD Type, CA45L Series, Case A, EIA 3216-16 Voltage 6.3V ,Capacitance 100μF,Tolerance ±10%, ESR 1.5 Ohms
Dimension
L3.20*W1.60H1.60mm
Original Part Number
CA45L-A6R3K107TE1K5
CA45LE035M476T
Description and Main Parameters
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 35V, Capacitance 47μF, Tolerance ±20%, ESR 0.40 Ohms
Dimension
L7.30*W4.30*H4.10mm
Original Part Number
CA45L-E035M476TE400
CA45LE016M227T
Description and Main Parameters
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 16V, Capacitance 220μF, Tolerance ±20%, ESR 0.22 Ohms
Dimension
L7.30*W4.30*H4.10mm
Original Part Number
CA45L-E016M227TE220
CA45LE010M477T
Description and Main Parameters
SMD Type, CA45L Series, Case E, EIA 7343-41 Voltage 10V, Capacitance 470μF, Tolerance ±20%, ESR 0.15 Ohms
Dimension
L7.30*W4.30*H4.10mm
Original Part Number
CA45L-E010M477TE150
CA45LD050K685T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 50V ,Capacitance 6.8μF,Tolerance ±10%, ESR 0.70 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D050K685TE700
CA45LD035K226T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 35V ,Capacitance 22μF,Tolerance ±10%, ESR 0.40 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D035K226TE400
CA45LD016K476T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 16V ,Capacitance 47μF,Tolerance ±10%, ESR 0.30 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D016K476TE300
CA45LD016K107T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 16V ,Capacitance 100μF,Tolerance ±10%, ESR 0.15 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D016K107TE150
CA45LD010K227T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 10V ,Capacitance 220μF,Tolerance ±10%, ESR 0.15 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D010K227TE150
CA45LD010K107T
Description and Main Parameters
SMD Type, CA45L Series, Case D, EIA 7343-28 Voltage 10V ,Capacitance 100μF,Tolerance ±10%, ESR 0.20 Ohms
Dimension
L7.30*W4.30*H2.80mm
Original Part Number
CA45L-D010K107TE200
