Light-Emitting Diode (LED)
PROUDCTS（ A ~ Z )
Discriminator & Filter Aluminum Elec. Capacitor Automotive Grade Crystal Diode/Transistor/MOSFET Inductor/Coils/Choke Light-Emitting Diode (LED) ML. Chip Capacitor (MLCC) Metallized Film Capacitor Oscillator Quartz Crystal Relay Ceramic Resonator Resistor SAW Filter/SAW Resonator SiC Schottky Diode/MOSFET Super Capacitor (EDLC) Tantalum Capacitor Thermistor Crystal
Light-Emitting Diode (LED)

ALL

Auto. SMD LED 3528 PLCC-2

Auto. SMD LED 3528 PLCC-4

Auto. SMD LED 3433 PLCC-6

Auto. SMD LED 4040 Side View

LED Lamp Dip Type

SMD 0603/0805/1206/1615

Image Description and Main Parameters Part Code Dimension Original Part Number Documents
Automotive SMD LED with 120° lens 4040 Side View VF: 2.8~3.6V. Luminous Flux Rank: 14~30 lm. CBR 4310~10010k. BDD series White BDD4SW0000000S L4.00*W4.00*H3.55mm BDD-4SW-000-00-00 Data Sheet View Inventory
Automotive SMD LED with 120° lens 4040 Side View VF: 1.9~2.65V. Luminous Intensity Rank: 1890~4580 mcd DWL: 620~628nm. BDD series Red BDD4SR000000S0 L4.00*W4.00*H3.55mm BDD-4SR-00-00-00 Data Sheet View Inventory
Automotive SMD LED with 120° lens 4040 Side View VF: 2.8~3.4V. Luminous Flux Rank: 8.9~15.8 lm. DWL: 587.5~592.5nm. BDD series Amber BDD4SPA000000S L4.00*W4.00*H3.55mm BDD-4SPA-00-0-000 Data Sheet View Inventory
Automotive SMD LED with 120° lens 4040 Side View VF: 2.75~3.35V. Luminous Intensity Rank: 450~910 mcd. DWL: 460~476nm. BDD series Blue BDD4SB0000000S L4.00*W4.00*H3.55mm BDD-4SB-000-00-00 Data Sheet View Inventory
Automotive SMD LED with 120° lens 4040 Side View VF: 1.9~2.65V. Luminous Intensity Rank: 1890~4580 mcd. DWL: 584~596nm. BDD series Yellow BDD4SY000000S0 L4.00*W4.00*H3.55 BDD-4SY-00-00-00 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 1.9~2.65V. Luminous Intensity Rank: 14~38 lm. DWL: 612~624nm. BDS series Amber BDSHA000000S00 L3.40*W3.30*H1.90mm BDS-HA-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 2.8~3.8V. Luminous Intensity Rank: 1890~4580 mcd. DWL: 464~476nm. BDS series Blue BDSHB0000000S0 L3.40*W3.30*H1.90mm BDS-HB-0000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 2.8~3.6V. Luminous Flux Rank: 42~70 lm. CCT: 5300~7000K. BDS series White BDSHCW0000000S L3.40*W3.30*H1.90mm BDS-HCW-0000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 2.8~3.6V. Luminous Intensity Rank: 38~60 lm. DWL: 587.5~592.5nm. BDS series Amber BDSHPA000000S0 L3.40*W3.30*H1.90mm BDS-HPA-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 2.05~2.65V. Luminous Intensity Rank: 18~34 lm. DWL: 584~596nm. BDS series Yellow BDSHY000000S00 L3.40*W3.30*H1.90mm BDS-HY-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-6 3433 VF: 1.9~2.65V. Luminous Intensity Rank: 18~34 lm. DWL: 620~628nm. BDS series Red BDSHR000000S00 L3.40*W3.30*H1.90mm BDS-HR-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 5670~14500mcd. DWL: 612~624nm. BDL series Amber BDLH6A000000S0 L3.50*W2.80*H1.75mm BDL-H6A-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 2880~11320mcd. DWL: 628~639nm. BDL series Red BDLH6SR000000S L3.50*W2.80*H1.75mm BDL-H6SR-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-4 3528 VF: 2.05~2.65V. Luminous Intensity Rank: 5670~17800mcd. DWL: 584~596nm. BDL series Yellow BDLH3Y000000S0 L3.50*W2.80*H1.75mm BDL-H3Y-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-4 3528 VF: 1.90~2.65V. Luminous Intensity Rank: 9085~28250mcd. DWL: 612~624nm. BDL series Amber BDLH3A000000S0 L3.50*W2.80*H1.75mm BDL-H3A-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 9085~28250mcd. DWL: 620~628nm. BDL series Red BDLH3R000000S0 L3.50*W2.80*H1.75mm BDL-H3R-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 1460~4580mcd. DWL: 584~596nm. BDA series Yellow BDAMY000000S00 L3.50*W2.80*H1.80mm BDA-MY-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 1460~4580mcd. DWL: 628~639nm. BDA series Red BDAMSR000000S0 L3.50*W2.80*H1.80mm BDA-MSR-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 1460~4580mcd. DWL: 620~632nm. BDA series Red BDAMR000000S00 L3.50*W2.80*H1.80mm BDA-MR-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 1890~4580mcd. DWL: 600~612nm. BDA series Orange BDAMO000000S00 L3.50*W2.80*H1.80mm BDA-MO-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 1.9~2.65V. Luminous Intensity Rank: 1890~4580mcd. DWL: 612~624nm. BDA series Amber BDAMA000000S00 L3.50*W2.80*H1.80mm BDA-MA-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-4 3528 VF: 2.05~2.65V. Luminous Intensity Rank: 4580~14500mcd. DWL: 584~596m. BDL series Yellow BDLH6Y000000S0 L3.50*W2.80*H1.75mm BDL-H6Y-000000 Data Sheet View Inventory
Automotive SMD LED with 120° lens PLCC-4 3528 VF: 2.8~3.6V. Luminous Flux Rank: 1460~4580mcd. CCT: 5000~7000K. BDA series Cool White BDACW2MW000000 L3.50*W2.80*H1.80mm BDA-CW2MW-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-2 3528 VF: 2.7~3.3V. Luminous Flux Rank: 6.2~12.8Im. CCT: 5300~7000K. BDC series Cool White Color BDCECW000000S0 L3.50*W2.80*H1.85mm BDC-ECW-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-2 3528 VF: 2.85~3.65V. DWL: 515~530nm. IV: 4500~7500mcd. BDC series Green Color BDCEG000000S00 L3.50*W2.80*H1.85mm BDC-EG-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-2 3528 VF: 2.85~3.65V. DWL: 463~475nm. IV: 4500~7500mcd. BDC series Blue Color BDCEB000000S00 L3.50*W2.80*H1.85mm BDC-EB-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-2 3528 VF: 1.9~2.65V. DWL: 584~596nm. IV: 5670~17800mcd. BDC series Yellow Color BDCEY000000S00 L3.50*W2.80*H1.85mm BDC-EY-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-2 3528 VF: 2.75~3.5V. DWL: 500~510nm. IV: 3600~7580mcd. BDC series Bluish Green Color BDCDBG000000S0 L3.50*W2.80*H1.85mm BDC-DBG-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-2 3528 VF: 1.8~2.4V. DWL: 620~628nm. IV: 2290~5740mcd. BDC series Red Color BDCDR000000S00 L3.50*W2.80*H1.85mm BDC-DR-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-2 3528 VF: 1.8~2.4V. DWL: 584~596nm. IV: 2290~5740mcd. BDC series Yellow Color BDCDY000000S00 L3.50*W2.80*H1.85mm BDC-DY-000000 Data Sheet View Inventory
Automotive SMD LED with 60° lens PLCC-2 3528 VF: 1.8~2.4V. DWL: 618~628nm. IV: 1460~4580mcd. BDC series Red Color BDCER000000S00 L3.50*W2.80*H1.85mm BDC-ER-000000 Data Sheet View Inventory
Automotive SMD LED with 30° lens PLCC-2 3528 VF: 2.75~3.75V. DWL: 464~476nm. IV: 1170~3600mcd. BDC series Blue Color BDCDB000000S00 L3.50*W2.80*H1.85mm BDC-DB-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF: 1.9~2.5V. DWL: 584~596nm. IV: 450~1460mcd. BDB series Yellow Color BDBNY000000S00 L3.50*W2.80*H1.85mm BDB-NY-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF: 1.9~2.5V. DWL: 628~639nm. IV: 362~1170mcd. BDB series Super Red Color BDBNSR000000S0 L3.50*W2.80*H1.85mm BDB-NSR-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF:2.8~3.4V. WLD:495~510nm. IV 910~2290mcd. BDB series Cyan Color BDBNCA000000S0 L3.50*W2.80*H1.85mm BDB-NCA-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF:2.65~3.4V. CCT: 6500~7000K. IV 1170~3600mcd. BDB series Cool White Color BDBCW2MM000000 L3.50*W2.80*H1.85mm BDB-CW2MM-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF:1.9~2.1V. WLD: 620~628nm. IV 560~1890mcd. BDB series Red Color BDBNR000000S00 L3.50*W2.80*H1.85mm BDB-NR-000000 Data Sheet View Inventory
Automotive SMD LED PLCC-2 3528 VF:1.9~2.5V. WLD: 612~624nm. IV 710~2290mcd. BDB series Amber Color BDBNA000000S00 L3.50*W2.80*H1.85mm BDB-NA-000000 Data Sheet View Inventory
SMD LED Dice Red/Green/Blue Diffused, IV: 17.5/43.5/12mcd Min. VF: 1.6/2.5/2.5V Min. WLD: 620/515/464nm Min. BND16RGBAS0001 L1.60*W1.50*H0.60mm BND-16RGBA Data Sheet View Inventory
SMD LED Disc White Clear, IV: 182mcd Min. VF: 2.8V Min. CCT: 6201k Min. BND1206JKWS001 L3.20*W1.60*H0.90mm BND-1206JKW Data Sheet View Inventory
SMD LED Disc Red Clear, IV: 58mcd Min. VF: 1.8V Min. WLD: 620nm Min. BND1206JKRS001 L3.20*W1.60*H0.90mm BND-1206JKR Data Sheet View Inventory
SMD LED Disc Blue Clear, IV: 150mcd Min. VF: 2.75V Min. WLD: 460nm Min. BND1206JKBS001 L3.20*W1.60*H0.90mm BND-1206JKB Data Sheet View Inventory
SMD LED Disc Yellow Green, IV: 150mcd Min. VF: 1.8V Min. WLD: 567nm Min. BND0805JKYGS01 L2.00*W1.25*H0.85mm BND-0805JKYG Data Sheet View Inventory
SMD LED Disc Red Clear, IV: 58mcd Min. VF: 1.8V Min. WLD: 620nm Min. BND0805JKRS001 L2.0*W1.25*H0.85mm BND-0805JKR Data Sheet View Inventory
SMD LED Disc Pure Green, IV: 150mcd Min. VF: 2.4V Min. WLD: 515nm Min. BND0805JKGS001 L2.00*W1.25*H0.85mm BND-0805JKG Data Sheet View Inventory
SMD LED Disc Blue Clear, IV: 150mcd Min. VF: 2.75V Min. WLD: 460nm Min. BND0805JKBS001 L2.00*W1.25*H0.85mm BND-0805JKB Data Sheet View Inventory
SMD LED Disc Yellow Green, IV: 1.5mcd Min. VF: 1.8V Min. WLD: 567nm Min. BND0603JKYGS01 L2.0*W1.25*H0.8mm BND-0603JKYG Data Sheet View Inventory
SMD LED Disc Red Clear, IV: 150mcd Min. VF: 1.8V Min. WLD: 620nm Min. BND0603JKRS001 L2.0*W1.25*H0.8mm BND-0603JKR Data Sheet View Inventory
SMD LED Disc Pure Green, IV: 150mcd Min. VF: 2.4V Min. WLD: 515nm Min. BND0603JKGS001 L2.0*W1.25*H0.8mm BND-0603JKG Data Sheet View Inventory
SMD LED Disc Blue Clear, IV: 150mcd Min. VF: 2.75V Min. WLD: 460nm Min. BND0603JKBS001 L2.0*W1.25*H0.8mm BND-0603JKB Data Sheet View Inventory

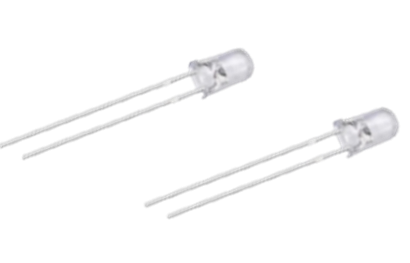

RED LED LAMPS with Flange, 3MM Round RALLF3053A10B1 Φ3.0*5.3mm RALLF3053A10B1 Data Sheet View Inventory
YELLOW LED LAMPS with Flange, 3MM Round YLLLF3053A10B1 Φ3.0*5.3mm YLLLF3053A10B1 Data Sheet View Inventory
PURE GREEN LED LAMPS with Flange, 3MM Round PGLLF3053A10B1 Φ3.0*5.3mm PGLLF3053A10B1 Data Sheet View Inventory
SMD LED Dice Red/Green/Blue Diffused, IV: 80/210/94mcd Min. VF: 1.8/2.7/2.7V Min. WLD: 620/522/467nm Min. 1615RGBBD168S1 L1.60*W1.60*H0.60mm 1615RGB-BD-168 Data Sheet View Inventory
SMD LED Disc Blue Clear, IV: 95mcd Min. VF: 2.7V Min. WLD: 466nm Min. 1206BBD8100S01 L3.20*W1.60*H0.90mm 1206B-BD-810 Data Sheet View Inventory
SMD LED Disc Red Clear, 230 mcd Min.@20mA, 1.8V Min. 1206RBD0900S01 L3.20*W1.60*H0.90mm 1206R-BD-090 Data Sheet View Inventory
SMD LED Disc Red Clear, IV: 115mcd Min. VF: 1.8V Min. WLD: 620nm Min. 0603RBD0700S01 L1.60*W0.80*H0.60mm 0603R-BD-070 Data Sheet View Inventory
SMD LED Disc Green Clear, IV: 275mcd Min. VF: 2.6V Min. WLD: 520nm Min. 0603GBD0790S01 L1.60*W0.80*H0.60mm 0603G-BD-079 Data Sheet View Inventory
SMD LED Disc Blue Clear, IV: 80mcd Min. VF: 2.6V Min. WLD: 468nm Min. 0603BBD0680S01 L1.60*W0.80*H0.60mm 0603B-BD-068 Data Sheet View Inventory
SMD LED Disc Red Clear, IV: 110mcd Min. VF: 1.8V Min. WLD: 620nm Min. 0805RBD0070S01 L2.00*W1.25*H0.80mm 0805R-BD-007 Data Sheet View Inventory
SMD LED Disc Blue Diffused, IV: 118mcd Min. VF: 2.8V Min. WLD: 467nm Min. 0805BBD8100S01 L2.00*W1.25*H0.80mm 0805B-BD-810 Data Sheet View Inventory
SMD LED Dice White Diffused, IV: 170mcd Min. VF: 2.7V Min. CCT: 10000k Min. 0805WBD8120S01 L2.00*W1.25*H0.80mm 0805W-BD-812 Data Sheet View Inventory
SMD LED Dice Yellow-Green Diffused, IV: 53mcd Min. VF: 1.9V Min. WLD: 570nm Min. 0805YGBD008S01 L2.00*W1.25*H0.80mm 0805YG-BD-008 Data Sheet View Inventory

PRODUCTS

Discriminator & Filter

Discriminators DC Series 450KHz/455KHz & DV Series 10.7MHz Filter FF/FG/FK Series 10.7MHz Filter FL/FM Series 450KHz/455KHz Filter FB Series 450KHz/455KHz Dip Type

Aluminum Elec. Capacitor

Dip Type SMD UE Series SMD UH/UL Series SMD UT Series SMD UZ Series SMD ZH/ZL/ZS/ZT/ZU Series SMD BW series SMD BZ seies SMD FZ series

Automotive Grade Crystal

XG3225 XS3225 XS2016 XG5032

Diode/Transistor/MOSFET

Bridge Rectifier Fast Recovery Diode Switching Diode General Purpose Diode High Efficiency Diode Schottky Diode Transistor Super Fast Diode TVS Diode Zener Diode ESD Diode MOSFET

Inductor/Coils/Choke

Power Inductor Multilayer Chip Power Inductor Chip Common Mode Inductor

Light-Emitting Diode (LED)

Auto. SMD LED 3528 PLCC-2 Auto. SMD LED 3528 PLCC-4 Auto. SMD LED 3433 PLCC-6 Auto. SMD LED 4040 Side View LED Lamp Dip Type SMD 0603/0805/1206/1615

ML. Chip Capacitor (MLCC)

Low Voltage 6.3V ~100V Medium Voltage 200V~ 630V High Voltage 1000V ~ 4000V Automotive Application (AEC-Q200) MT series High Q & Low ESR RF Series Soft Termination SH Series

Metallized Film Capacitor

Dip MKP series

Oscillator

RA(CO14) RB(CO8) RC(COM75) RD(COM53) RE(COM32) RF(COM22) RJ(COK21)/RK(COK22)/RL(COK32)/RM(COK53)/RN(COK75) RV(COM21) RY(COM11)

Quartz Crystal

XB(CM75) XC/XD(CM63/CM53) XF(CM32) XG(CA) XI(CM22) XS/XJ(CS/CSS) XM/XK/XN(CSM2/CSSM2/CSSM5) XP(CMG632) XR(CMG532) XV(CM21) XY(CM11) XZ(CM12) YA/YB/YD(CCA/CCB/CCD) YG(CCMD) YL/YR/YS/YT(CCMJ/CCMM/CCMS/CCMN) YN (CCMA) YP (CCMC) YQ(CCME) YU/YV(CCMU/CCMV) XH (HC-49SX)

Relay

General Power Relay Automotive Relay Signal Relay

Ceramic Resonator

CA/CB(CRA/CRB) CD(CRTWS) CG(CRAV) CH(CRTE) CJ(CRAW) CK(CRTC) CL(CRTS) CM(CRTV) CN(CRTW) CP(CRTP) CQ(CRAP) CR(CRTR) CS(CRAS) CT(CRT) CU(CRAR)

Resistor

Wire Wound SMW series Thick Film CR series Thick Film CL series Thick Film CP series Thick Film RCR series Thin Film ARU/UR series

SAW Filter/SAW Resonator

SAW Filter SAF SAW Filter SBF SAW Filter SDF SAW Resonator SAR SAW Resonator SBR SAW Resonator SCR/SER/SGR SAW Resonator SDR SAW Resonator SIR

SiC Schottky Diode/MOSFET

SiC Schottky Diode SiC MOSFET

Super Capacitor (EDLC)

EM Series

Tantalum Capacitor

CA42 A Dip Type CA45 A CA45 B CA45 C CA45 D CA45 E CA45L A/B/C/D/E CA45 P SMD Conductive Polymer CA55 A/B/C SMD Conductive Polymer CA55 D/E/F/H

Thermistor Crystal

TSX2520 TSX2016 TSX1612
BDBNA000000S00
Description and Main Parameters
Automotive SMD LED PLCC-2 3528 VF:1.9~2.5V. WLD: 612~624nm. IV 710~2290mcd. BDB series Amber Color
Dimension
L3.50*W2.80*H1.85mm
Original Part Number
BDB-NA-000000
Documents
Data Sheet View Inventory
PGLLF3053A10B1
Description and Main Parameters
PURE GREEN LED LAMPS with Flange, 3MM Round
Dimension
Φ3.0*5.3mm
Original Part Number
PGLLF3053A10B1
Documents
Data Sheet View Inventory
0603BBD0680S01
Description and Main Parameters
SMD LED Disc Blue Clear, IV: 80mcd Min. VF: 2.6V Min. WLD: 468nm Min.
Dimension
L1.60*W0.80*H0.60mm
Original Part Number
0603B-BD-068
Documents
Data Sheet View Inventory
0805YGBD008S01
Description and Main Parameters
SMD LED Dice Yellow-Green Diffused, IV: 53mcd Min. VF: 1.9V Min. WLD: 570nm Min.
Dimension
L2.00*W1.25*H0.80mm
Original Part Number
0805YG-BD-008
Documents
Data Sheet View Inventory
BDBNR000000S00
Description and Main Parameters
Automotive SMD LED PLCC-2 3528 VF:1.9~2.1V. WLD: 620~628nm. IV 560~1890mcd. BDB series Red Color
Dimension
L3.50*W2.80*H1.85mm
Original Part Number
BDB-NR-000000
Documents
Data Sheet View Inventory
YLLLF3053A10B1
Description and Main Parameters
YELLOW LED LAMPS with Flange, 3MM Round
Dimension
Φ3.0*5.3mm
Original Part Number
YLLLF3053A10B1
Documents
Data Sheet View Inventory
0603GBD0790S01
Description and Main Parameters
SMD LED Disc Green Clear, IV: 275mcd Min. VF: 2.6V Min. WLD: 520nm Min.
Dimension
L1.60*W0.80*H0.60mm
Original Part Number
0603G-BD-079
Documents
Data Sheet View Inventory
0805WBD8120S01
Description and Main Parameters
SMD LED Dice White Diffused, IV: 170mcd Min. VF: 2.7V Min. CCT: 10000k Min.
Dimension
L2.00*W1.25*H0.80mm
Original Part Number
0805W-BD-812
Documents
Data Sheet View Inventory
BDBCW2MM000000
Description and Main Parameters
Automotive SMD LED PLCC-2 3528 VF:2.65~3.4V. CCT: 6500~7000K. IV 1170~3600mcd. BDB series Cool White Color
Dimension
L3.50*W2.80*H1.85mm
Original Part Number
BDB-CW2MM-000000
Documents
Data Sheet View Inventory
RALLF3053A10B1
Description and Main Parameters
RED LED LAMPS with Flange, 3MM Round
Dimension
Φ3.0*5.3mm
Original Part Number
RALLF3053A10B1
Documents
Data Sheet View Inventory
